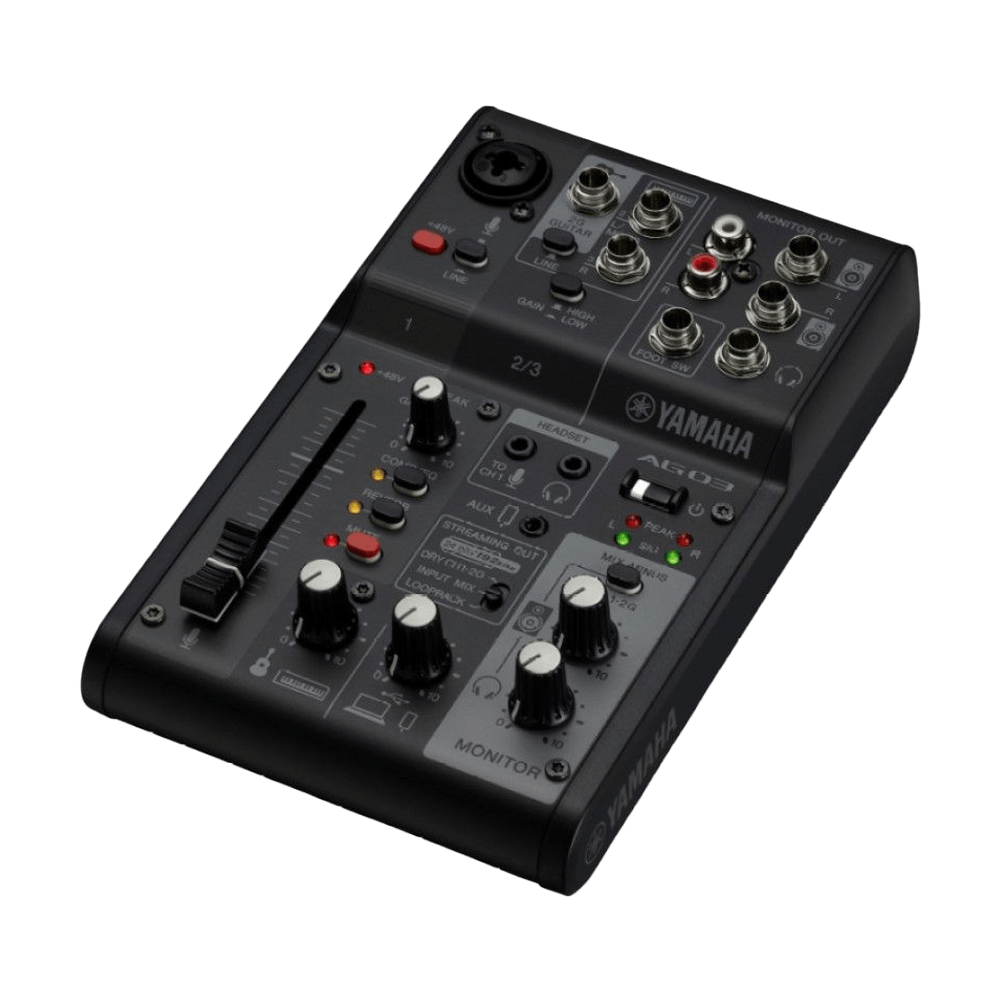

Yamaha AG03MK2-BK 3-Channel Live Streaming Mixer & USB Audio Interface – Black

Yamaha AG03MK2 — The Streaming & Recording Mixer Built for Creators

Whether you're a musician recording at home in Lebanon, a podcaster, a content creator, or a live streamer, the Yamaha AG03MK2-BK gives you professional-grade audio in one compact, bus-powered unit. No complicated setup. No compromise on sound quality.

The AG03MK2 is the second generation of Yamaha's best-selling AG03 — already an industry standard among creators worldwide. The MK2 upgrade brings USB-C connectivity, improved internal circuitry for cleaner audio, a new dedicated mute button, and expanded smartphone connectivity via a 4-pole mini jack (TRRS).

️ Professional Inputs for Every Source

• XLR / ¼" Combo Input (CH1) — Connect any condenser or dynamic microphone. Switchable 48V phantom power supports studio-grade condenser mics.
• ¼" Line / Guitar Input (CH2) — Hi-Z switch allows you to plug in an electric guitar or bass directly — no DI box needed.
• 3.5mm TRRS (4-pole) Mini Jack — Connect your smartphone for input and output simultaneously. Add voice chat, music, or sound effects from your phone to your stream.
• Loopback Function — Route audio from your computer back into the streaming output, letting you layer desktop audio, music, and sound effects with your live input.

️ Zero-Latency DSP Effects

• 1-Touch Compressor / EQ — Instantly tighten and balance your mic sound with a single button.
• Reverb — Add natural room ambience or studio depth to your voice or instrument.
• Amp Simulator — Gives your direct guitar signal authentic amplified tone without a physical amp.
• All effects are processed internally with zero latency — critical for live streaming where any delay is unacceptable.
• Effects can be completely bypassed for clean, dry recording when you want pure capture for post-production.

Outputs & Monitoring

• ¼" Stereo Main Output — Connect to studio monitors or a PA system.
• RCA Stereo Output — Connect to home stereo equipment or recording gear.
• ¼" Headphone Output — With dedicated volume control for real-time personal monitoring.

USB-C Audio Interface — 24-bit / 192kHz

The AG03MK2 connects to your PC, Mac, iPad, or iPhone via USB-C and is immediately recognised as an audio interface — no driver installation required on most systems. Record at up to 24-bit / 192kHz resolution, delivering studio-quality audio directly into your DAW, streaming software, or video call platform.

️ Physical Controls

• 60mm Fader — Large, smooth master level fader for precise real-time control.
• Mute Button — Cut your microphone instantly when needed. Can also be triggered via optional FC5 footswitch — keeping your hands free.
• Pad & Hi-Z Buttons — Fine-tune input sensitivity for different sources.

Included Software

• Cubase AI — Full-featured DAW from Steinberg for music recording and production.
• WaveLab Cast — Professional audio editing and podcast production software.
• AG Controller (free download) — Software control of all DSP settings from your computer or iOS device.
• Rec'n'Share & Cubasis LE — Free iOS apps for mobile recording and streaming.

Technical Specifications
